peak power 10.000 W
according VDE AR-N-4105
for grid connection
degree of protection: IP65
euro efficiency: 98,1 %
w x h x d: 525 / 470 / 166
nominal power: 10.000 WAC
max. DC voltage: 1.100 V
three-phase grid control
10 years warranty
up to 20 years optional
with integrated Interface RS485, WLAN
| Weight | 17 kg |
|---|---|
| Dimensions | 52,5 × 16,6 × 47 cm |

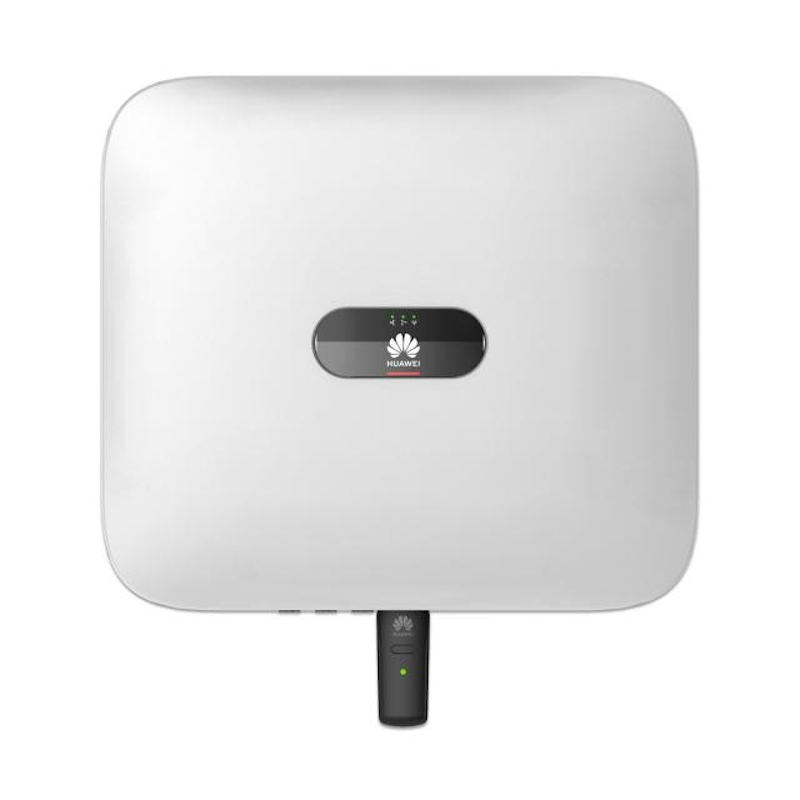

3-phase inverters (3-10KTL M1 series)
Optimization – partial or full, with 450W optimizers,
25 year warranty
AI BOOST active safety – Active arc protection supported by artificial intelligence
Higher yield – Up to 30% more energy yield with optimizer (450Wp)2
Battery ready – DC-DC charging
10 year warranty – extendable to 20 years
Up to 3-10 kW power, 2 operating points
WIFI interface – smartphone app and remote monitoring
TÜV certified, for both outdoor and indoor use Inverter maximum input power 20,000Wp when designed with long strings and all solar panels
equipped with SUN2000-450W-P optimizer.
Product Benefits:
Built-in PID recovery
Built-in surge protection (AC, DC)
Radio frequency control
Passive cooling
Battery charging option from the mains
