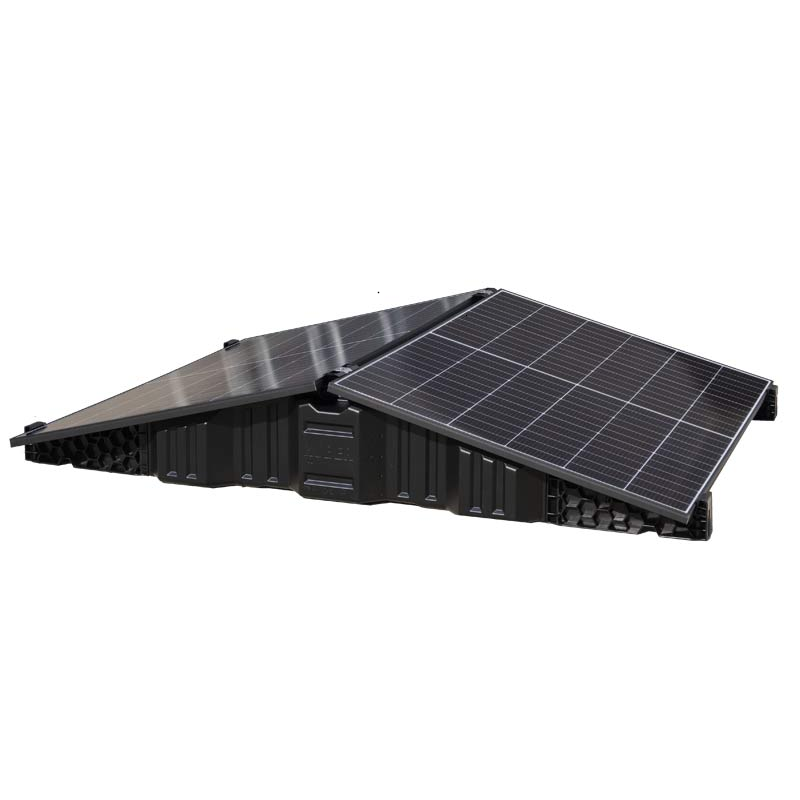

HUBER Solarfix E-W water tank mounting system

HUBER Solarfix GmbH is revolutionizing PV installation on flat roofs.

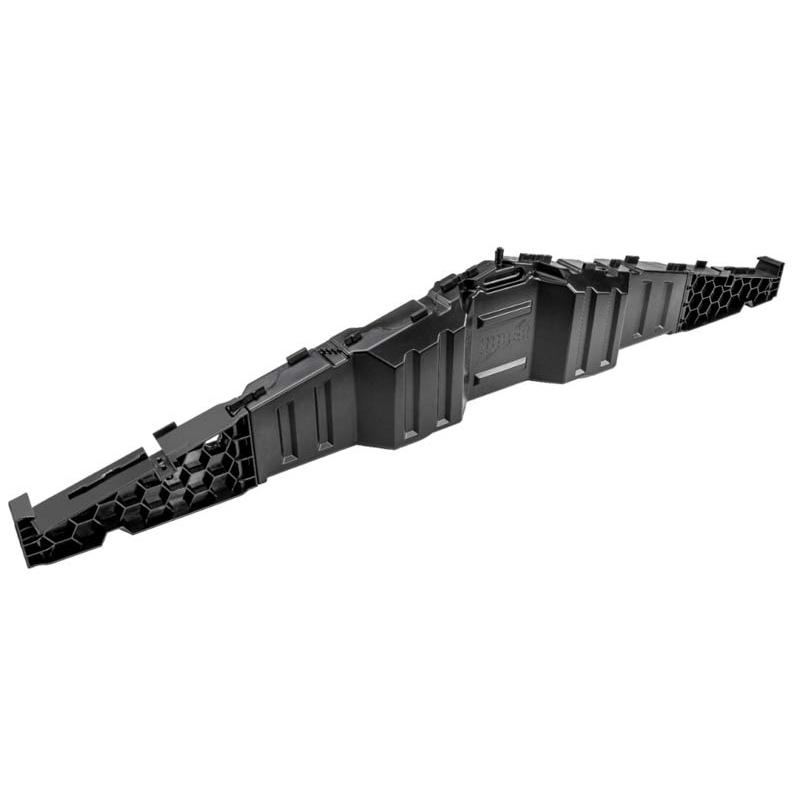

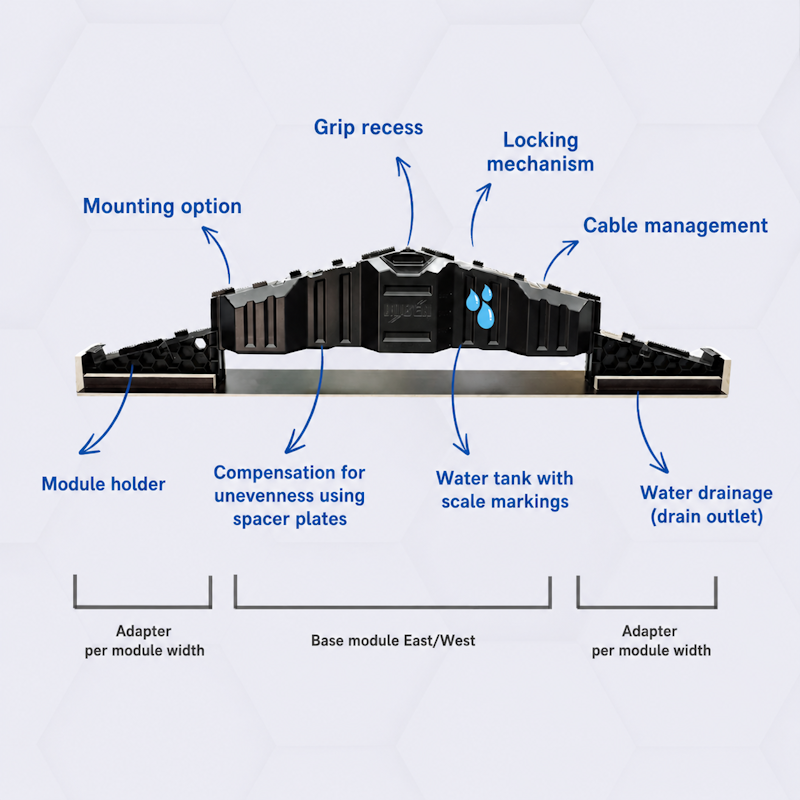

The HUBER Solarfix mounting system is an innovative substructure for the professional and safe installation of photovoltaic systems on flat roofs. Ballasting is achieved by filling the tank with water. This mounting system therefore requires no penetration of the roof membrane and no additional weighting with ballast stones.

The HUBER Solarfix system is a revolutionary solution for mounting PV systems on flat roofs.

Benefits

• Fast, easy installation
• Low weight
• Low acquisition and ballasting costs
• No roof penetration required
• No fastening required
• Low maintenance
• 100% Made in Germany
• UV, frost, and weather resistant
• 100% recyclable

Applications

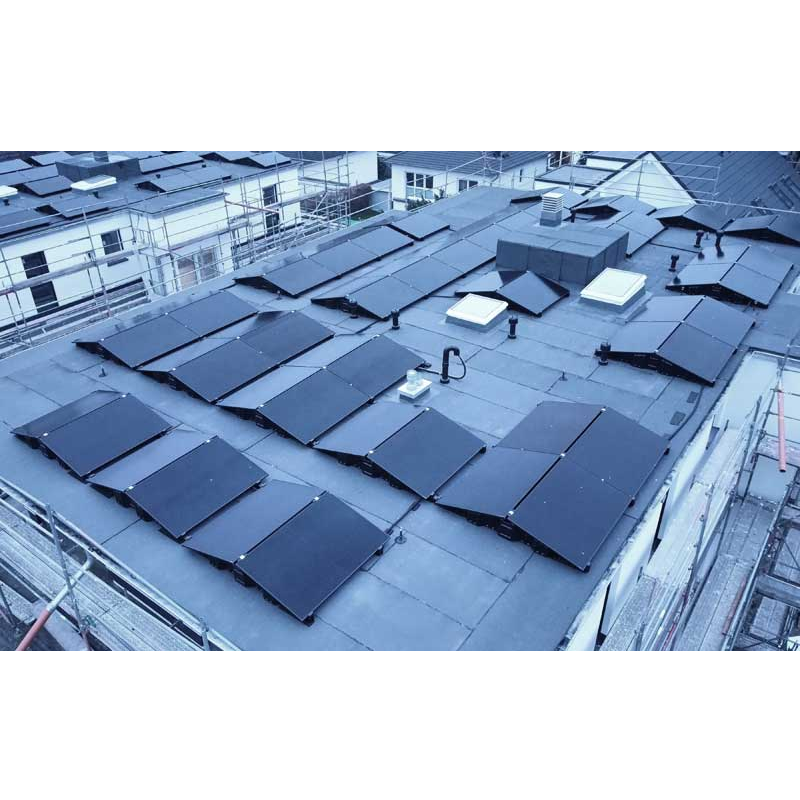

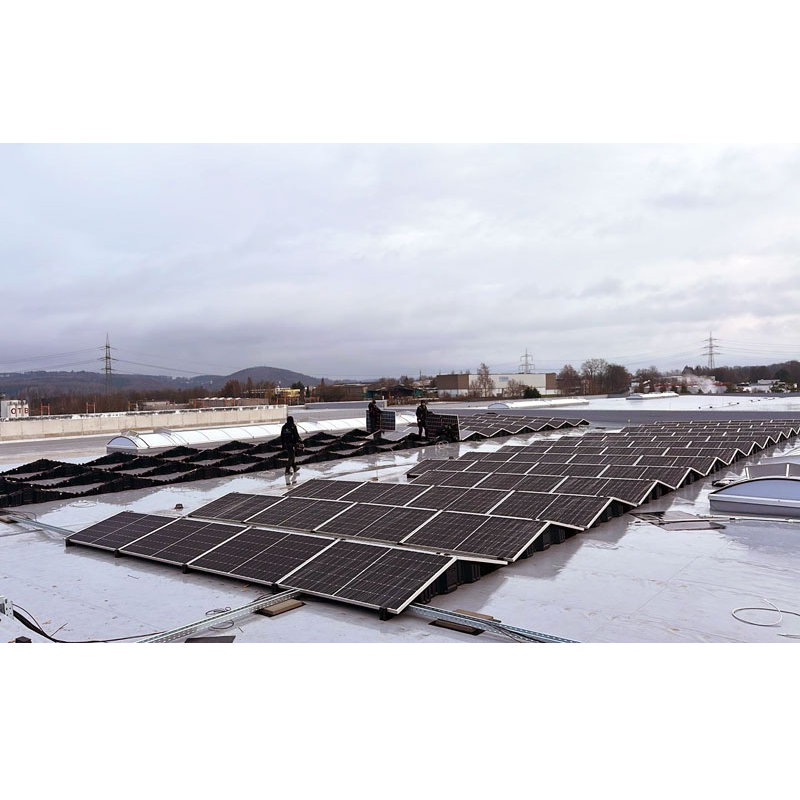

• Flat roofs
• Balcony power plants

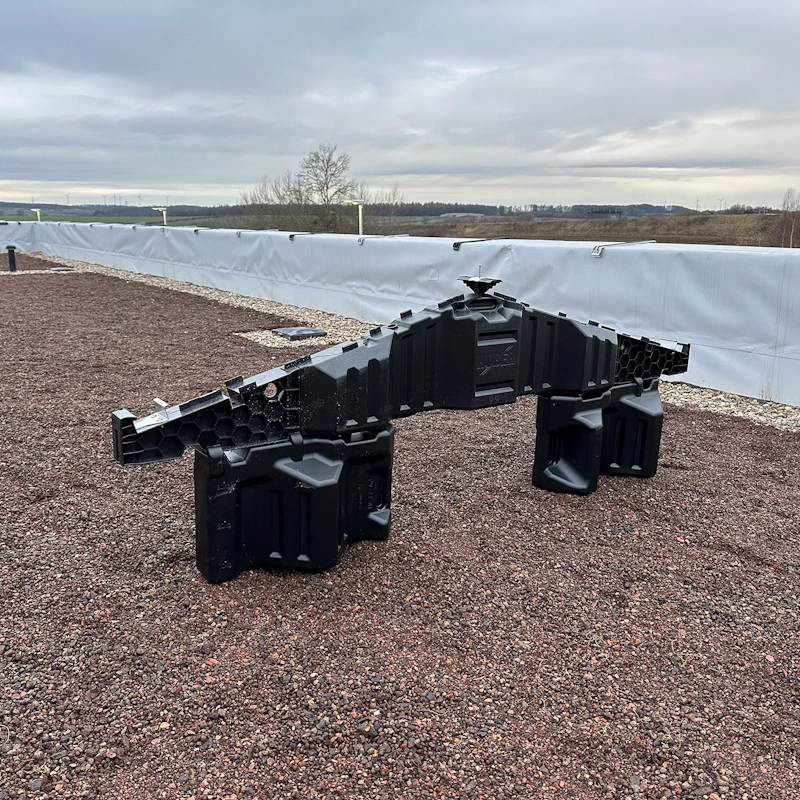

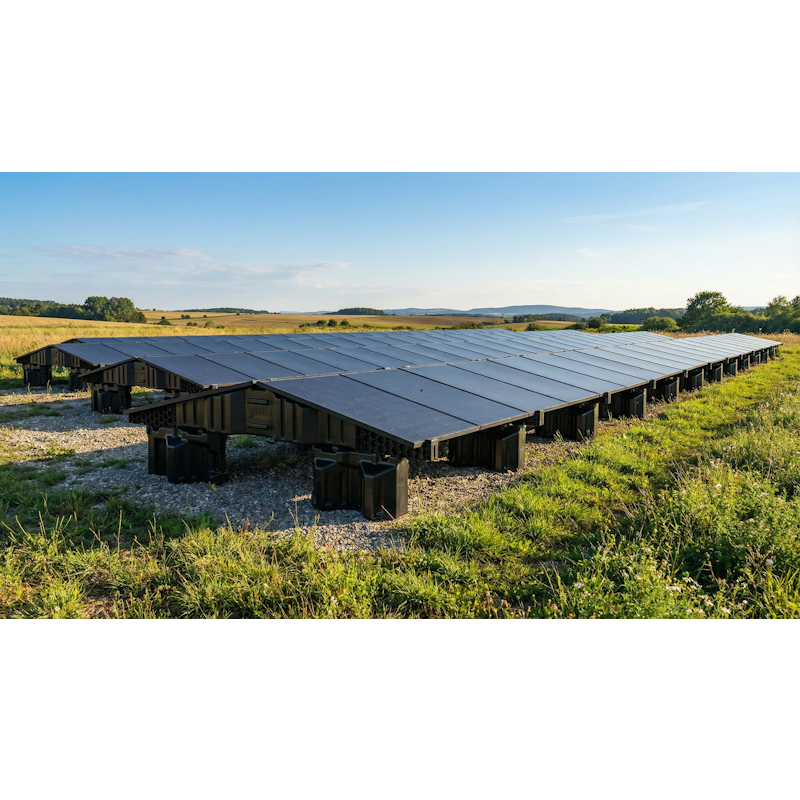

• Ground-mounted systems
• Gardens

Suitable PV modules

PV module width (W)
1,129 – 1,136 mm
PV module height (H)
29 – 30 mm
PV module length (L)
Customizable
* Special sizes available upon request

Certifications

• Wind assessment EN 1991-1-4
• Structural stability certificate
• Climate test according to standard PV 12000
• Fire protection class B2
